Button Battery
19/12/2023

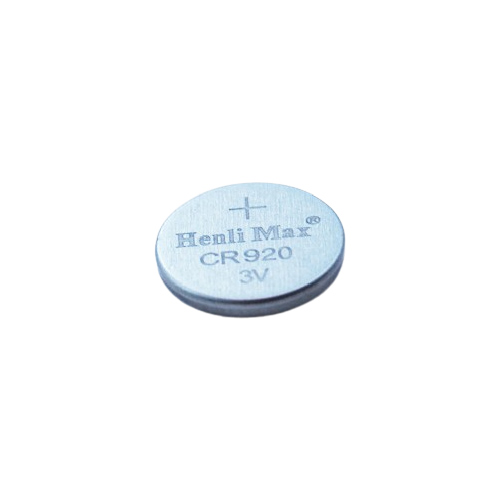

Model | CR920 |
Ingredients | MnO2, Lithium, Stainless Steel, Electrolyte, etc. |
Brand | Henli Max |
Specifications
Nominal Voltage | 3V | Nominal Current | 0.1mA |
Nominal Capacity | 25mAh | MAX Pulse Current (mA) | 5mA |
Diameter | 9.5mm | Height | 2.0mm |
Operating Temperature | -20~60℃ | Weight | 0.5g |
Dimension
Product Superiority
1. Strong large current working performance
Break the power bottleneck of traditional lithium battery through our own research and innovation.
2. Excellent anti-leakage performance
Independently designed and optimized battery structure to ensure the anti-leakage characteristics of the battery.
3. Superior long storage performance
The independently developed special sealing technology ensures a long storage life of the battery.
Applications
CR920 Lithium Manganese Dioxide Button Battery can be used in many different products. Here are some common examples:
Personal Computers
Electronic Shelf Labels
Toys
E-Watches
POS
Domestic Medical Equipments
Instruments and Apparatus
Security and Protection Monitoring
Discharge Curve
National Standard - CR 920 Discharge Curve with Constant Resistance of 15K at Normal Temperature
Product Video
