You might wonder about the difference between batteries like CR2032 and CR2025. Size and capacity set them apart, which affects how your devices work. Using the correct battery keeps your gadgets running safely and efficiently. Industry rules, such as Reese’s Law and ANSI/US 4200A-2023, require secure battery compartments and performance testing. Always match battery size and voltage to your device. Henlimax offers reliable CR2032 batteries that meet strict safety and quality standards.

Key Takeaways

• The CR2032 battery is thicker and has a higher capacity than the CR2025, allowing it to last up to 50% longer in devices.

• Both batteries have the same voltage, but using the correct type ensures your device operates safely and efficiently.

• Always check your device's manual for the recommended battery type to avoid performance issues and potential damage.

• CR2032 batteries are ideal for high-drain devices, while CR2025 batteries fit better in slim, low-power gadgets.

• Proper storage and disposal of batteries are crucial for safety and environmental protection; always recycle used batteries.

Quick Comparison and Difference Between Batteries

Comparison Table

You may wonder how CR2032 and CR2025 batteries compare side by side. The table below shows the main features, so you can see the difference between batteries at a glance.

Tip: Both batteries have the same diameter, but the CR2032 is thicker and holds more energy. This means it lasts longer in most devices.

Key Differences Summary

When you choose between these two batteries, you need to know the main difference between batteries like CR2032 and CR2025. Here are the key points:

• The CR2032 is 0.7 mm thicker than the CR2025. This extra thickness gives it more room for chemicals inside, so it stores more energy.

• The CR2032 weighs about 20% more than the CR2025. This extra weight comes from the extra material inside.

• Both batteries have the same voltage, so they can power the same types of circuits. However, the CR2032 can last up to 50% longer because it has a higher capacity.

• You will find the CR2032 in devices that need more power or longer battery life, such as car key fobs, computer motherboards, and medical devices like glucose meters. The CR2025 fits better in slim devices, such as thin TV remotes, calculators, and small toys.

• The difference between batteries also affects cost. The CR2032 usually costs a bit more because it uses more material and lasts longer.

If you want your device to run longer without changing the battery, the CR2032 is often the better choice. If your device needs a thinner battery, the CR2025 is the right fit.

You can see that the difference between batteries is not just about size. It also affects how long your device will work and which battery will fit best. Always check your device’s battery compartment and user manual before choosing.

Size and Fit

Diameter and Thickness

You may notice that both CR2032 and CR2025 batteries have the same diameter of 20 mm. This means they look almost identical when you place them side by side. The main difference between batteries lies in their thickness. The CR2032 measures 3.2 mm thick, while the CR2025 is only 2.5 mm thick. This 0.7 mm difference might seem small, but it plays a big role in how each battery fits inside your device.

A thicker battery like the CR2032 fits snugly in compartments designed for it. This ensures strong contact with the device’s terminals, which helps your device work reliably. If you try to use a thinner CR2025 in a slot made for a CR2032, the battery may not touch the contacts well. This can cause your device to turn off or work only sometimes. Devices that need a slim battery, such as a CR2025, often cannot close properly if you try to use a thicker CR2032.

Always check the battery compartment size before choosing a replacement. A proper fit keeps your device safe and working as it should.

Device Compatibility

Manufacturers design each device to use a specific battery size. This choice helps your device perform at its best. For example, slim gadgets like digital watches or small remotes often use the CR2025 because it fits in tight spaces. Devices that need more power or longer battery life, such as car key fobs or medical monitors, usually use the CR2032.

Here is a quick look at what manufacturers recommend:

If you ignore these guidelines, you may damage your device or cause it to stop working. The difference between batteries like CR2032 and CR2025 affects not just fit, but also how well your device runs. Always match the battery type to your device for the best results.

Capacity and Voltage

Power Output

You might wonder how much power these batteries can deliver. Both CR2032 and CR2025 provide a steady 3.0 volts, which is enough for most small electronics. The main difference between batteries comes from their capacity. The CR2032 holds more energy because it is thicker and contains more lithium. This extra capacity means it can power devices for a longer time and handle higher energy needs.

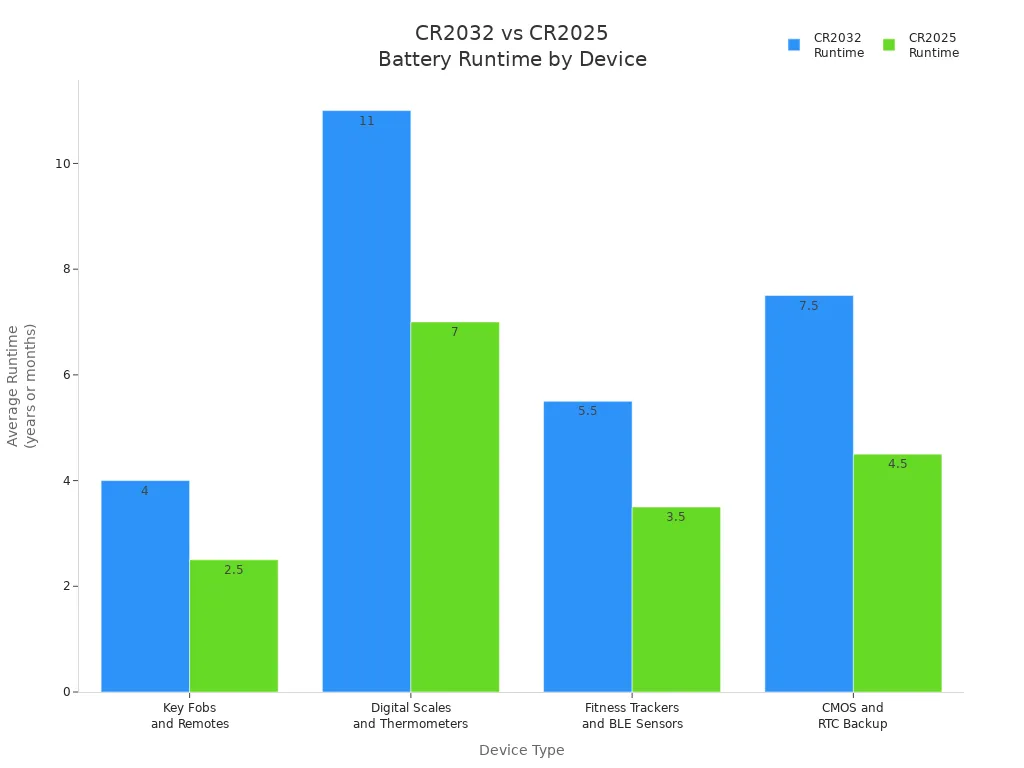

Let’s look at how these batteries perform in real devices:

Tip: Devices that need quick bursts of power, like key fobs, work better with a CR2032. You get more reliable performance and longer life.

Battery Life

Battery life depends on how much energy your device uses. The CR2032 usually lasts longer because it stores more energy. Here are some typical lifespans for CR2032 batteries in common devices:

• CR2032 batteries can last between 1 to 3 years depending on usage and device type.

• In low-drain devices like key fobs, they can last closer to 3 years.

• For CMOS batteries in motherboards, the lifespan can extend to 3-5 years due to minimal current draw.

• In low-drain applications such as watches and calculators, CR2032 batteries may last from 2 to 5 years.

• In high-drain devices like digital thermometers, the lifespan may reduce to 6 to 12 months.

You can see that the difference between batteries like CR2032 and CR2025 affects how long your device will run before you need a replacement. Always check your device’s needs to choose the right battery for the best performance.

Chemistry and Performance

Lithium Manganese Dioxide

You might wonder what makes CR2032 and CR2025 batteries work so well in your devices. Both use lithium manganese dioxide as their main chemistry. This combination gives you a stable and reliable power source. Here is a simple table that shows the main parts inside these batteries and what each part does:

This chemical setup helps both batteries deliver a steady 3-volt output. You get consistent power because the voltage stays flat as the battery discharges. The CR2032 holds more energy than the CR2025 because it has a larger internal volume.

Henlimax uses advanced lithium manganese dioxide chemistry in its CR2032 batteries. You can trust Henlimax to meet strict safety standards. Each battery goes through careful testing to make sure it is safe and reliable. To stay safe, you should avoid short-circuiting, charging, or disassembling any lithium battery. Never throw batteries into fire.

Shelf Life and Temperature Range

You want your batteries to last as long as possible. High-quality CR2032 batteries, like those from Henlimax, can last over 10 years if you store them properly. Most CR2032 and CR2025 batteries have a shelf life between 5 and 10 years. Lower-quality batteries may only last about 5 years.

Both battery types work best when you use and store them at room temperature, around 20–25°C (68–77°F). They can operate in a wide range of temperatures, from −20°C to +60°C (−4°F to 140°F). Extreme heat can damage the battery and reduce its life. Cold temperatures can make it harder for the battery to deliver power. For the best results, keep your batteries in a cool, dry place.

Tip: Always check the expiration date on your battery packaging. Store spare batteries away from heat and moisture to keep them working longer.

Interchangeability

Swapping CR2032 and CR2025

You may wonder if you can swap a CR2032 and a CR2025 battery in your device. Both batteries have the same diameter and voltage, so they look similar and can power the same circuits. In some cases, you can use one in place of the other if the battery fits in the slot. For example, if your device runs out of power and you only have a CR2025 or a CR2032, you can use it as a temporary solution.

Here is a quick comparison to help you understand the main differences:

If you use a CR2032 in a slot made for a CR2025, the thicker battery might not fit. If you use a CR2025 in a slot for a CR2032, the thinner battery may not make good contact. Your device might turn on, but it may not work as well or for as long. The CR2032 lasts longer because it holds more energy.

Note: Swapping batteries works best as a short-term fix. Always check your device’s manual for the recommended battery type.

Risks and Considerations

You should always follow the manufacturer’s guidelines when replacing batteries. Using the wrong size can cause problems. Here are some important points to remember:

• Never force a battery into a slot that is too small. This can damage your device or the battery.

• Do not use foil or other materials to make a thinner battery fit. This can cause a short circuit and may harm your device.

• Always use the battery size listed in your device’s instructions. This keeps your device safe and working well.

If you swap batteries in an emergency, watch your device closely. A CR2025 will not last as long as a CR2032 in high-drain devices. A CR2032 may not fit in slim devices. Choosing the right battery helps your device last longer and stay safe.

Tip: When in doubt, stick with the battery type your device recommends. This simple step protects your electronics and gives you the best performance.

Choosing the Right Battery

Common Devices

You see CR2032 and CR2025 batteries in many everyday items. These batteries power small electronics that you use at home, at school, or on the go. Here are some of the most common devices that need these batteries:

• Remote controls

• Watches

• Hearing aids

• Smart home devices

• Wearables

• Industrial applications

You might find a CR2032 in your car key fob or a fitness tracker. A CR2025 often fits inside a slim remote or a digital watch. Manufacturers choose these batteries because they are small, light, and reliable. You can trust them to keep your devices running smoothly.

Tip: If your device is thin or lightweight, it probably uses a CR2025. If it needs more power or longer life, it likely uses a CR2032.

Selection Tips

Choosing the right battery helps your device work its best. You should always check your device’s manual or look at the old battery for the correct type. Here is a simple table to help you compare the main features of CR2025 and CR2032 batteries:

You should pick a CR2025 for slim, low-power devices. Choose a CR2032 if your device needs more energy or longer battery life. Always match the battery size and type to your device for safety and best performance.

Remember: Using the right battery keeps your device safe and helps it last longer. Trusted brands like Henlimax offer quality batteries you can rely on.

Replacement and Safety Tips

Identifying the Correct Battery

You want your device to work well and stay safe. Picking the right battery is the first step. Here are some steps you can follow to make sure you choose the correct coin cell battery:

1. Check the Size and Model Number
   Look at your old battery or inside the battery compartment. You will see numbers like CR2032 or CR2025. These numbers show the size and type.

2. Match the Voltage
   Make sure the new battery has the same voltage as your device needs. Most coin cells like CR2032 and CR2025 use 3 volts.

3. Consider Capacity and Lifespan
   Choose a battery with enough capacity for your device. Devices that use more power need batteries with higher capacity.

4. Read the Device Manual
   Your device manual lists the right battery model. Always check it before buying a replacement.

5. Buy from Trusted Brands
   Pick batteries from reliable brands like Henlimax. This helps you avoid leaks and device problems.

6. Think About Safety and the Environment
   Look for batteries with safety features. Consider how you will dispose of the battery when it is empty.

Tip: Never mix old and new batteries. This can cause uneven power and damage your device.

Safe Handling and Disposal

You must handle and dispose of batteries with care. This keeps you safe and protects the environment.

• Store batteries in a cool, dry place away from heat and flames.

• Keep batteries out of reach of children and pets.

• Do not carry loose batteries in your pocket or bag. They can short-circuit if they touch metal objects.

• Use non-conductive tape to cover the battery terminals before storing or throwing them away.

• Never try to recharge, crush, or burn coin cell batteries.

• Take used batteries to a recycling center or a collection point. Do not throw them in the trash.

Improper disposal can cause fires or leaks. Harmful chemicals can enter the soil and water. Recycling helps recover valuable metals and reduces pollution.

️ Always recycle your used batteries. This small step protects your community and the planet.

You see clear differences between CR2032 and CR2025 batteries. The table below shows the size:

Choosing the correct battery helps your device work safely and last longer. Battery Monitoring Systems protect your device by keeping it within safe limits. Trusted brands like Henlimax offer reliable batteries. Always recycle button-cell batteries at special facilities and handle them with care to avoid hazards.

FAQ

Can you use a CR2025 instead of a CR2032?

You can use a CR2025 in place of a CR2032 if it fits, but it will not last as long. The thinner CR2025 has less capacity. Always check your device’s manual before swapping batteries.

Why do both batteries have the same voltage?

Both CR2032 and CR2025 use lithium manganese dioxide chemistry. This gives each battery a steady 3-volt output. Your device will work with either battery if the size fits.

How do you know which battery your device needs?

Look at the old battery or check your device’s manual. The battery type, such as CR2032 or CR2025, is printed on the battery. Always match the number for best results.

Are Henlimax CR2032 batteries safe for all devices?

Henlimax CR2032 batteries meet strict safety standards. You can use them in watches, remotes, and medical devices. Always follow your device’s instructions for safe use.

What is the best way to store spare button batteries?

Store batteries in a cool, dry place. Keep them away from heat, moisture, and direct sunlight. Always keep batteries out of reach of children and pets.
