What is a cr2032 battery

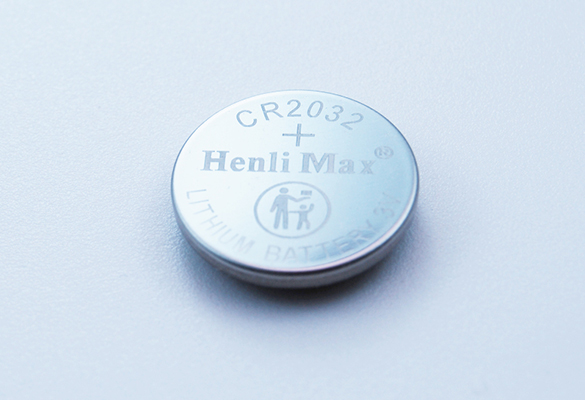

The CR2032 battery is a ubiquitous yet often overlooked component in modern electronics, powering everything from wristwatches to medical devices. As a lithium coin-cell battery, it combines compact size, stable voltage output, and long shelf life, making it indispensable in applications requiring reliable low-power energy sources. This article explores the technical specifications, chemistry, applications, and environmental considerations of the CR2032 battery, providing a comprehensive understanding of its role in daily life and industrial sectors.

Technical Specifications and Physical Characteristics

The CR2032 belongs to the IEC 60086-4 standard for lithium primary batteries and is classified as a "coin cell" due to its flat, circular shape. Its name encodes its dimensions: "CR" indicates lithium chemistry, "20" represents a diameter of 20 millimeters, and "32" denotes a thickness of 3.2 millimeters. This standardized sizing ensures compatibility across devices designed for this battery type.

Key technical parameters include:

Nominal Voltage: 3.0 volts, maintained consistently throughout discharge.

Capacity: Typically ranges from 210mAh to 240mAh, depending on manufacturer and testing conditions. For instance, Panasonic specifies 225mAh under a 0.2mA continuous load at 20°C, while Maxell lists 220mAh under similar conditions.

Operating Temperature: Ranges from -30°C to 85°C, with some models tolerating up to 60°C or 70°C under continuous load. This wide thermal stability makes it suitable for extreme environments, such as automotive key fobs exposed to summer heat or medical devices in cold storage.

Shelf Life: Up to 10 years when stored at 23°C with 40–75% humidity, thanks to a self-discharge rate of less than 1% per year.

Weight: Approximately 2.8–3.2 grams, contributing to its lightweight design for portable devices.

Chemistry and Composition

The CR2032’s performance stems from its lithium manganese dioxide (Li/MnO₂) chemistry. The anode consists of lithium metal, while the cathode uses manganese dioxide as the active material. A non-aqueous organic electrolyte separates these electrodes, enabling a stable electrochemical reaction that generates electricity.

This composition offers several advantages:

1.High Energy Density: Lithium’s low atomic weight and high reactivity allow for compact energy storage, ideal for small devices.

2.Voltage Stability: Unlike alkaline batteries, which experience voltage drop-off during discharge, the CR2032 maintains a near-constant 3V output until depletion, ensuring consistent device operation.

3.Low Self-Discharge: The electrolyte’s chemical stability minimizes energy loss during storage, extending shelf life.

4.Leak Resistance: The hermetic sealing and solid-state design reduce the risk of electrolyte leakage, protecting devices from corrosion.

Applications Across Industries

The CR2032’s versatility has cemented its place in numerous sectors:

1.Consumer Electronics:

Wristwatches: Powers analog and digital timepieces, including smartwatches with minimal power demands.

Calculators: Provides long-lasting energy for basic and scientific models.

Remote Controls: Used in car key fobs, TV remotes, and garage door openers due to its compact size and reliable output.

PDAs and Organizers: Early handheld devices relied on CR2032 batteries for memory backup.

2.Computing:

Motherboard CMOS Batteries: Maintains BIOS settings, date, and time when the system is powered off. A dead CR2032 in a computer often triggers error messages during startup.

3.Medical Devices:

Glucose Monitors: Powers portable blood glucose meters for diabetes management.

Tensiometers and Thermometers: Ensures accurate readings in clinical and home-use devices.

4.Automotive and Security:

Keyless Entry Systems: Enables remote locking/unlocking and trunk access.

Tire Pressure Monitoring Systems (TPMS): Some sensors use CR2032 batteries to transmit real-time data to the dashboard.

5.Toys and Games:

LED Lights and Sound Modules: Powers small toys, flashlights, and musical greeting cards.

6.Fitness and Outdoor Gear:

Pedometers and Calorie Counters: Tracks physical activity without frequent battery replacements.

Stopwatches: Used in sports timing devices for its precision and durability.

Comparisons with Similar Batteries

While the CR2032 dominates its niche, it shares similarities—and differences—with other coin-cell batteries:

CR2025: Thinner (2.5mm vs. 3.2mm) with lower capacity (~160mAh), suitable for space-constrained devices like fitness trackers.

CR1632: Smaller diameter (16mm) and capacity (~140mAh), often used in hearing aids or small remotes.

LR2032: An alkaline alternative with lower capacity (~90mAh) and faster voltage decline, better suited for low-drain devices like laser pointers.

Substituting these batteries can lead to malfunctions, as devices are engineered for specific voltage, size, and capacity requirements. For example, using a CR2025 in a CR2032-designed slot may result in poor contact or premature failure.

Environmental and Safety Considerations

Lithium coin-cell batteries, including the CR2032, pose environmental and safety risks if improperly handled:

Recycling: Lithium batteries contain valuable metals like cobalt and manganese, which can be recovered through recycling. Many retailers and recycling centers accept spent CR2032 batteries to prevent landfill contamination.

Safety Hazards: Swallowing a CR2032 battery can cause severe internal burns due to electrolyte leakage. Manufacturers advise keeping batteries away from children and using child-proof packaging.

Disposal: Incineration or puncturing can lead to explosions or fires. Always dispose of CR2032 batteries via designated recycling programs.

Conclusion

The CR2032 battery exemplifies the convergence of compact design, reliable performance, and versatility in modern energy storage. Its lithium manganese dioxide chemistry ensures stable voltage output, while its standardized dimensions and wide temperature tolerance make it a staple in consumer electronics, medical devices, automotive systems, and more. Despite competition from alternatives like CR2025 or alkaline variants, the CR2032 remains the preferred choice for applications demanding long shelf life, minimal self-discharge, and consistent power delivery. As technology evolves, the CR2032 battery’s role in enabling portable, low-power devices will persist, underscoring its enduring relevance in an increasingly electronic world. Whether powering a wristwatch, securing a car, or monitoring health, the CR2032 battery continues to prove that small components can have a significant impact.
