What's the difference between cr2032 and cr2025 batteries
You can spot the main difference between CR2032 and CR2025 batteries by their thickness. CR2032 is slightly thicker and holds more energy. Choosing the right battery helps your device last longer and work better. Many devices, such as key fobs, digital scales, and fitness trackers, use these batteries.
Device Type | CR2032 Battery Life | CR2025 Battery Life |
|---|---|---|
Key Fobs and Remotes | 3 to 5 years | 2 to 3 years |
Digital Scales and Thermometers | 10 to 12 months | 6 to 8 months |
Fitness Trackers and BLE Sensors | 5 to 6 months | 3 to 4 months |
CMOS and RTC Backup | 5 to 10 years | 3 to 6 years |
If you want reliable power for your device, the cr2025 battery is a smart choice.
Key Takeaways
CR2032 batteries are thicker and last longer than CR2025 batteries, making them ideal for high-drain devices.
Choose the CR2025 battery for slim devices like watches and remote controls, as it fits perfectly in tight spaces.
Always check your device's manual for the recommended battery type to ensure safety and optimal performance.
Using the wrong battery can damage your device or cause safety issues, so avoid substitutions unless specified by the manufacturer.
Both batteries have a long shelf life, making them reliable choices for devices you don't use every day.
CR2025 Battery vs CR2032
Size and Thickness
You can tell the difference between these two batteries by looking at their size. Both have a diameter of 20mm, but the thickness is not the same. The CR2025 battery is 2.5mm thick, while the CR2032 is 3.2mm thick. This means the CR2025 battery is 0.7mm thinner.
Tip: The numbers in the battery code help you remember their size. The "20" means 20mm in diameter. The last two digits show the thickness in tenths of a millimeter. For example, "25" means 2.5mm and "32" means 3.2mm.
The thickness affects how the battery fits in your device. Here is a table to help you see which battery fits best:
Battery Type | Fit in CR2032 Space | Fit in CR2025 Space |
|---|---|---|
CR2025 | Usually works but won't last as long | Fits perfectly |
CR2016 | Might work but much shorter life | Won't fit |
CR2032 | Won't fit, too thick | N/A |
If your device needs a slim battery, you should use the CR2025 battery. It fits perfectly in thin devices like watches and small remotes.
Capacity and Voltage
Both batteries give you a voltage of 3V. This means they can power the same types of electronics. The main difference is in their capacity, which tells you how much energy the battery can store. The CR2032 holds more energy because it is thicker.
Here is a table that shows the typical voltage and capacity:
Battery Type | Voltage (V) | Capacity (mAh) |
|---|---|---|
CR2032 | 3 | 225 |
CR2025 | 3 | 150-170 |
A higher capacity means the battery lasts longer before you need to replace it. For example, if you use a CR2025 battery in a key fob, it might last about 12 months. If you use a CR2032, it could last up to 24 months. Here is a chart that shows how long each battery lasts in different devices:
You can see that the CR2032 lasts longer in most devices. But the CR2025 battery still gives you good performance, especially in devices that do not use much power.
Chemistry and Shelf Life
Both batteries use lithium manganese dioxide chemistry. This gives them a steady voltage and a long shelf life. You can store these batteries for many years without losing much power.
Here is a table that compares the shelf life and other features:
Battery Type | Voltage | Shelf Life | Self-Discharge | Cost |
|---|---|---|---|---|
Lithium (CR2032/CR2025) | 3.0V | 7+ years | Very low | More expensive upfront |
Alkaline | 1.5V | 3 years | Higher | Cheaper upfront |
Manufacturers say that the shelf life of a CR2032 can be over 10 years if you store it well. The CR2025 battery also lasts many years when kept in a cool, dry place. This makes both batteries a smart choice for devices you do not use every day.
Note: Both the CR2025 battery and CR2032 are reliable options for long-term storage and use. Their lithium chemistry helps them keep power for a long time.
You now know the main technical differences between the CR2025 battery and the CR2032. This will help you pick the right one for your device.
Device Compatibility
Slim Devices
You often find slim devices that need a small, lightweight battery. These gadgets include simple calculators, slim remote controls, basic watches, small toys, hearing aids, and digital thermometers. Designers choose the cr2025 battery for these products because it fits perfectly in tight spaces. The battery’s thin profile makes it ideal for electronics where every millimeter counts.
Here are some reasons why slim devices use this battery:
Compact size allows for thinner device designs.
Lower power needs match the battery’s capacity.
Perfect for applications with limited space.
Note: Wearable devices and compact electronics require miniaturized battery packs. Smaller batteries limit energy capacity, so choosing the right size is important for both performance and fit.
The table below shows how battery thickness can affect device design:
Battery Thickness | Challenges |
|---|---|
Below 3 mm | Harder to manufacture, sensitive to small changes in production, less capacity |
Extremely thick | Poor heat dissipation, swelling, uneven current, shorter battery life |
If you try to use a thicker battery like the CR2032 in a slim device, you may run into fitting problems. The battery compartment might not close, or the battery could damage the device.
High-Drain Devices
Some devices need more power to work well. These high-drain devices include key fobs, motherboards, medical devices, calculators, and fitness trackers. The CR2032 battery works better in these products because it has a higher capacity and can handle more current.
Here is a quick comparison:
Battery Type | Common Devices | Compatibility |
|---|---|---|
CR2032 | Watches, key fobs, motherboards, medical devices, calculators, fitness trackers | High-drain applications |
CR2025 | Slim electronics, remote controls, compact wearables | Limited space applications |
The CR2032 can provide up to 20mA of continuous current, while the CR2025 is limited to about 10mA. This means the CR2032 lasts longer and keeps a stable voltage in devices that use more power, especially during short bursts of activity.
Tip: Always check your device’s battery compartment. Using the wrong size can cause loose contact or poor performance. If the battery feels loose or does not fit snugly, choose the correct type for your device.
CR2025 Battery Applications
Everyday Electronics
You use the cr2025 battery in many everyday devices. Designers choose this battery for gadgets that need a compact power source. You find it in simple calculators, slim remote controls, basic watches, and small toys. The thin size fits perfectly in these products, making them easy to carry and use.

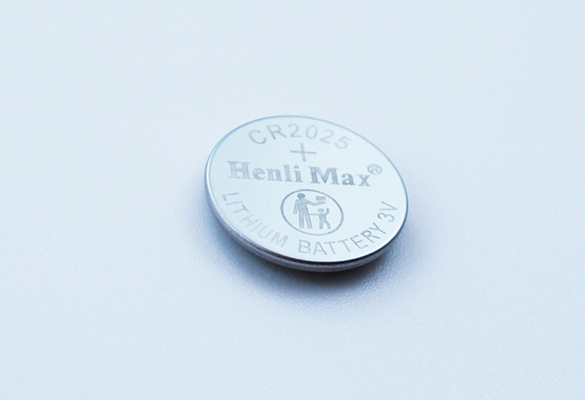

Henlimax CR2025 Button Battery stands out as a reliable choice for these electronics. You get steady power and long-lasting performance. The battery works well in devices that do not require high energy. You can trust it to keep your watch running or your remote ready for action.
Tip: When you select a battery for your device, check the size and capacity. The cr2025 battery fits best in slim gadgets and provides enough energy for daily use.
Medical and Specialized Devices
You also see the cr2025 battery in medical and specialized devices. These include hearing aids, digital thermometers, and some glucose monitors. Medical devices need stable voltage and safe operation. You want a battery that meets strict standards.
Manufacturers follow important safety and quality rules. The table below shows key standards and protections:
Required Standards | Description |
|---|---|
IEC 62133 | lithium battery global safety standard |
UN38.3 | transport safety |
IEC 60601-1 | medical electrical equipment |
ISO 13485 | medical device quality management |
RoHS/REACH | environmental compliance |
Key Safety Protections | Description |
|---|---|
Overcharge / over-discharge | Protection against excessive charging or discharging |
Over-current & short-circuit | Prevents damage from excessive current or short circuits |
Thermal protection & temperature sensors | Monitors and manages temperature to prevent overheating |
Cell balancing | Ensures even charge distribution among cells |
Fire-resistant casing | Provides additional safety in case of fire hazards |
Henlimax CR2025 Button Battery meets these standards. You get peace of mind knowing your medical device uses a battery that is safe and reliable. You protect your health and your equipment by choosing a battery that follows international rules.
Note: Always check for safety certifications when you buy batteries for medical devices. Reliable batteries help your devices work properly and keep you safe.
Choosing the Right Battery
Manufacturer Recommendations
You should always check what the device manufacturer suggests before buying a battery. Manufacturers test their products with specific batteries, like CR2025 or CR2032, to make sure everything works safely and efficiently. If you follow their advice, you help your device last longer and perform better.
Device makers list the exact battery type in the manual or on the battery compartment.
They choose battery types after careful testing and design work.
Major brands recommend using the battery they specify for best results.
You also need to look at technical specifications. The C rating tells you how much current the battery can handle. Different devices need different C ratings. If you match the battery’s specs to your device, you get better performance and longer battery life.
The C rating shows the maximum safe current for the battery.
Devices with higher power needs require batteries with higher C ratings.
Understanding these specs helps you pick the right battery for your needs.
Here is a table to help you compare important factors:
Factor | CR2025 | CR2032 |
|---|---|---|
Thickness | Thinner, suitable for ultra-slim devices | Thicker, preferred for devices with more space |
Power Demand | Lower capacity, shorter runtime | Higher capacity, longer runtime |
Battery Life | Shorter due to smaller size | Longer due to larger internal volume |
Tip: Always use the battery type listed by the manufacturer. This keeps your device safe and working well.
Risks of Substitution
If you use the wrong battery, you risk damaging your device or causing safety problems. Mixing brands or battery chemistries can be dangerous. You might see leaks, over-discharge, or even harm to the device and yourself.
Using different battery types together can cause electrolyte leakage.
Incorrect substitution may drain one battery faster, leading to poor performance.
Mixing batteries can result in over-discharge and possible leaks.
You protect your device and yourself by following the manufacturer’s instructions. Using the right battery keeps everything running smoothly and safely.
Note: Never substitute batteries unless the manufacturer says it is safe. The right battery choice prevents accidents and keeps your electronics reliable.
Performance in Use
Battery Life Comparison
You want your devices to last as long as possible between battery changes. The CR2032 battery usually gives you 30 to 50% more life than the CR2025. This happens because the CR2032 holds more energy and keeps its voltage steady, even when your device needs more power. For example, if you use a car remote, the CR2032 can last three to five years. The CR2025 in the same remote might last only two to three years. This extra time matters when you rely on your device every day.

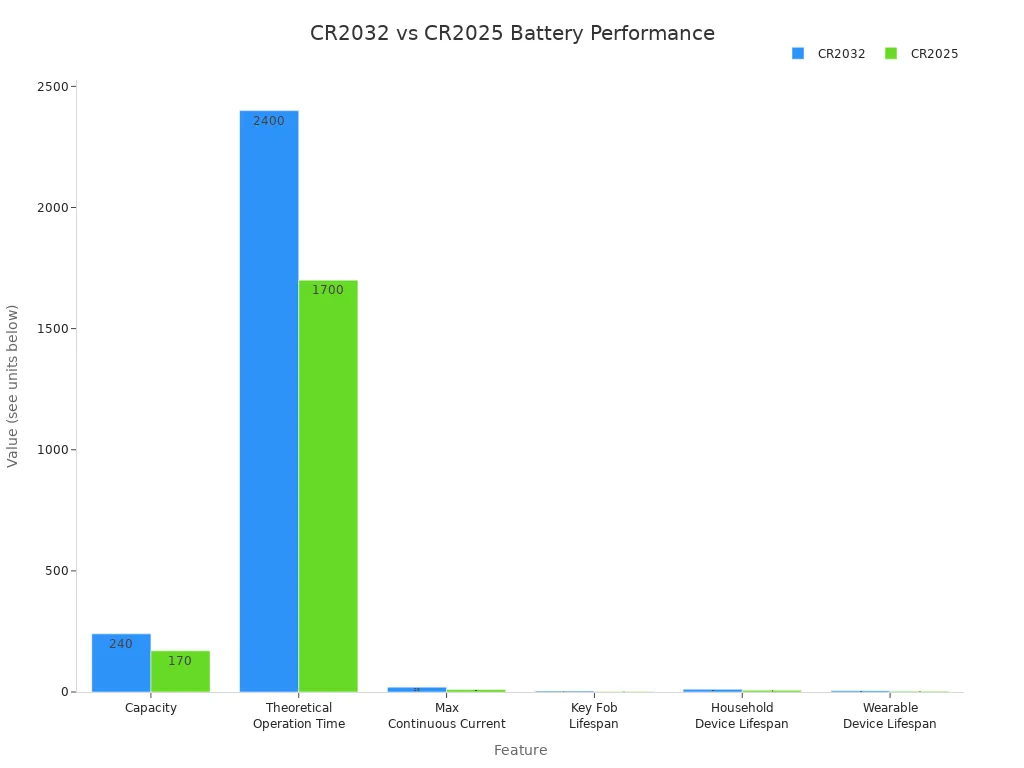

Here is a table that shows how the two batteries compare in real use:
Feature | CR2032 | CR2025 |
|---|---|---|
Capacity | 240mAh | 170mAh |
Theoretical Operation Time | 2,400 hours (100 days) | 1,700 hours (71 days) |
Maximum Continuous Current | 20mA | 10mA |
Typical Lifespan in Key Fobs | 3-5 years | 2-3 years |
Lifespan in Household Devices | 10-12 months | 6-8 months |
Lifespan in Wearable Devices | 5-6 months | 3-4 months |
Real-World Scenarios
You see the difference between these batteries in your daily life. Devices like key fobs, wireless sensors, and fitness trackers work better and longer with the CR2032. The higher energy capacity means you do not have to change batteries as often. The CR2032 also keeps a steady voltage, so your devices avoid errors or sudden shutdowns.
The CR2032 gives you longer runtimes in most devices.
It keeps voltage stable, which helps prevent problems in low-power gadgets.
Devices that need more current, like key fobs and wireless sensors, work best with the CR2032.
You should always match the battery to your device’s needs. If your device uses more power or you want fewer battery changes, the CR2032 is often the better choice.
You now know that CR2032 batteries are thicker and last longer, while CR2025 batteries fit better in slim devices. Always match the battery to your device’s needs for the best results. Check technical specs and follow manufacturer advice.
The right battery helps your device work safely and reliably.
Battery systems monitor voltage, current, and temperature to prevent problems.
Proper matching can stop overheating and keep your electronics safe.
Choose wisely to protect your devices and enjoy steady performance every day.
FAQ
Can you use a CR2032 battery instead of a CR2025?
You should not swap these batteries unless your device manual says it is safe. The CR2032 is thicker and may not fit. Always check the battery compartment and follow the manufacturer’s advice.
How do you know which battery your device needs?
You can find the battery type printed on the old battery or inside the battery compartment. Device manuals also list the correct battery. Always match the code exactly for best results.
Why do some devices need thinner batteries like the CR2025?
Slim devices, such as watches or small remotes, need thin batteries to save space. The CR2025 fits these devices perfectly. Using a thicker battery may damage the device or prevent it from closing.
How should you store spare button batteries?
Store spare batteries in a cool, dry place. Keep them in their original packaging. Avoid mixing new and used batteries. Keep batteries away from children and pets for safety.
What does the “CR” in CR2025 and CR2032 mean?
The “CR” stands for lithium manganese dioxide chemistry. The numbers show the size: “20” is the diameter in millimeters, and “25” or “32” is the thickness in tenths of a millimeter.
