You cannot swap a CR2430 battery and a CR2032 battery directly. Both options supply 3V nominal voltage, but their physical sizes differ significantly. These dimensional variations prevent proper installation in battery compartments. You must evaluate physical dimensions, mAh capacity ratings, and manufacturer safety guidelines before choosing a power cell for your electronic device.

Key Takeaways

• Check your device manual for the exact battery model because distinct physical sizes prevent direct battery swapping.

• Choose the wider CR2430 battery to get up to 35 percent more energy capacity for high-drain devices.

• Avoid using makeshift spacers or forcing incorrect battery sizes to prevent short circuits and permanent hardware damage.

Technical Specification Overview

Direct Spec Comparison

You can compare these two coin cell models directly by evaluating their key technical parameters. Both power options utilize Lithium Manganese Dioxide chemistry and deliver 3.0 V nominal voltage. However, you will observe clear variations in physical size and overall energy storage capability.

You must select the cell matching your device specifications. The CR2430 cell delivers higher typical energy capacity for demanding gear. However, its wider surface prevents proper fitment inside standard CR2032 compartments.

Decoding Coin Cell Naming Conventions

You can easily read battery sizes by decoding the International Electrotechnical Commission standard naming system. The letters and numbers print directly onto the metal surface of each coin cell.

• First two digits: Represent the outer diameter in full millimeters.

• Last two digits: Represent the total height or thickness in tenths of a millimeter.

For example, you can decode the CR2032 label immediately. The number 20 indicates a 20 mm diameter. The number 32 means a 3.2 mm thickness. In contrast, the CR2430 label shows a 24 mm diameter and a 3.0 mm thickness. The C prefix identifies lithium chemistry, while the R signifies a round shape. Reading these labels prevents power connection issues in your daily electronics.

Physical Dimension Comparison

Battery dimensions determine if a coin cell fits into your electronic device properly. You cannot assume two batteries are identical just because they supply the same 3V power. Small physical variations create major operational issues. You must inspect the precise millimeter measurements before purchasing any replacement coin cell.

Diameter and Thickness Differences

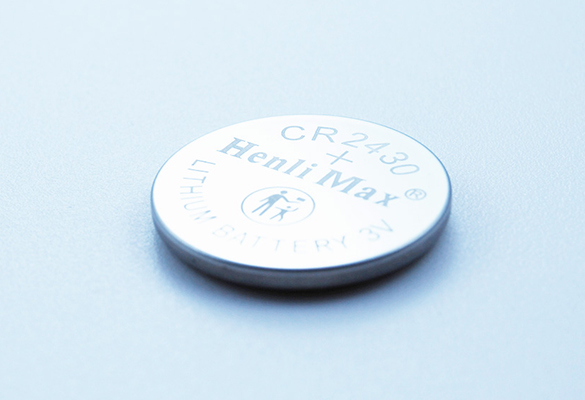

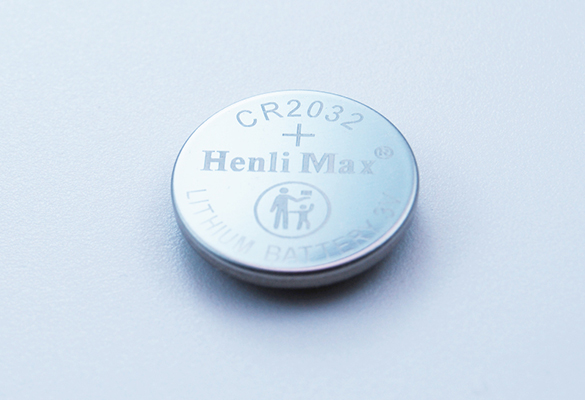

The CR2430 battery measures exactly 24.0 mm in diameter and 3.0 mm in thickness. You can compare these measurements directly against the dimensions of the CR2032 cell. The CR2032 features a narrower 20.0 mm diameter, but it measures 3.2 mm in total height.

The numerical labels reveal these precise physical traits instantly. The CR2032 cell body has a 4.0 mm smaller width than the CR2430 model. However, the CR2032 body adds 0.2 mm of extra height across its vertical profile. The CR2430 format spreads its total material across a broader, flatter circular shape. These dimensional differences prevent the two battery types from sharing the same mounting hardware.

Compartment Fitment Impacts

Battery compartments require exact sizing to establish stable electrical connections. Inserting a wider cell into a small slot causes physical damage to internal plastic clips. You risk bending delicate metal terminal springs out of place permanently. Forced installation often cracks sensitive circuit boards in compact handheld electronics.

Inserting a smaller coin cell into a large socket causes severe contact failure. The 20.0 mm battery slides around inside a 24.0 mm tray easily. This loose positioning prevents positive metal contacts from touching battery surfaces firmly. Intermittent contact disrupts electrical flow, causing your electronic equipment to turn off unexpectedly.

Matching the physical size to your battery holder guarantees continuous contact reliability and prevents permanent hardware damage.

Proper fitment protects your device performance over time. You must avoid placing a narrower cell into a wider compartment using temporary spacers. Custom modifications usually fail under normal vibration. You always achieve optimal contact reliability by installing the exact cell model specified in your device manual.

Capacity and Performance Differences

Capacity in mAh

Battery capacity measures the total electrical charge a cell stores over time. Engineers express this value in milliampere-hours, shortened to mAh. A higher mAh rating allows your electronic device to run longer before you need a replacement battery.

The CR2032 cell usually provides around 220 mAh of total energy. In comparison, the CR2430 battery delivers roughly 270 mAh to 300 mAh. The larger physical footprint of the 2430 cell holds more active raw materials inside its steel casing. This extra volume gives you up to 35 percent more energy capacity compared to a standard 2032 unit.

Higher mAh ratings benefit power-hungry electronics directly. Devices like medical sensors, security key fobs, and digital calipers draw high pulse currents during operation. A smaller capacity cell drains quickly under heavy loads. The larger cell maintains a steady voltage output for extended periods. Installing a high-capacity coin cell reduces the frequency of power disruptions in your essential equipment.

Long-Term Performance and Stability

Cell chemistry dictates how reliably a button battery performs throughout its service life. The Henli Max CR2430 battery uses advanced 3V Lithium Manganese Dioxide chemistry. This specific formulation provides exceptional energy density within a compact structure. It supplies steady operational voltage to sensitive internal circuits, keeping your electronics running smoothly.

Henli Max engineers this coin cell with a very low self-discharge rate. The battery retains its stored energy for years on the shelf. You can store spare power cells safely without losing critical voltage.

Reliable leak resistance protects your valuable electronics from internal damage. Battery leaks release corrosive chemicals that destroy delicate metal contacts and circuit boards. Henli Max utilizes strict manufacturing standards and robust seals to prevent fluid leakage. The cell maintains structural integrity across a wide operating temperature range. You can rely on this power source for primary applications and critical backup systems alike.

Device Applications

CR2032 Uses in Daily Electronics

You encounter CR2032 batteries inside many standard household electronics every day. These compact coin cells power common personal items like keyless entry car fobs, digital wristwatches, smartwatches, and fitness trackers. You also rely on them to run small household items like garage door openers, television remotes, indoor digital thermometers, and LED lights.

Many personal health devices and computing systems also require this standard coin battery size.

• Personal care devices like digital bathroom scales, blood pressure cuffs, and glucose monitors

• Desktop computer motherboards, network servers, and memory backup systems

• Home safety devices including motion detectors, window security alarms, and calculators

CR2430 Uses in Specialized Equipment

You need a CR2430 battery when your equipment requires steady energy over an extended service lifetime. Certain computer motherboards install a CR2430 battery as their main CMOS power source instead of a standard CR2032. This extra capacity helps preserve system settings like date and time configurations during long power-off periods. High-end digital timepieces with extra features like backlighting and loud alarms also utilize this battery model to maintain long operational life.

Specialized industries rely heavily on this larger coin cell format to avoid frequent battery replacements. Electronic personal organizers, PDAs, and security system sensors require extended service intervals to maintain continuous operation. You can find these reliable power sources across several key equipment categories.

Interchangeability Concerns

Dangers of Forcing Battery Sizes

Forcing an oversized battery into a small compartment damages your electronic equipment quickly. Pressing a wider cell into a narrow slot bends internal metal terminals instantly. You snap delicate plastic retaining clips when you apply physical force during forced installation. Oversized coin cells place excessive mechanical stress on sensitive battery holders and outer casings.

Physical pressure creates permanent hardware damage inside your valuable device housing. Bent metal spring connectors lose their elastic tension completely over time. Damaged housing components fail to hold future replacement batteries in place securely. You also risk cracking delicate internal circuit boards when you wedge incorrect cell shapes into tight spaces. Physical forcing destroys valuable electronic equipment before the new battery even delivers power.

Contact Issues and Spacers

Inserting a smaller battery into a larger slot causes severe operational failures. An undersized coin cell shifts position inside an oversized holder constantly. This physical gap prevents steady contact between conductive metal springs and battery surfaces. Intermittent electrical connections disrupt steady power delivery, turning your handheld device off unexpectedly during critical tasks.

Some users attempt to fix improper fitment with risky homemade modifications. Using conductive DIY spacers or shims like aluminum foil creates extreme electrical hazards. Any shift or accidental contact bridging the positive and negative terminals simultaneously results in a short circuit. This direct electrical path causes severe outcomes, including rapid thermal buildup, chemical leakage, structural rupture, or severe fire hazards. You must always install the precise battery model specified inside your owner manual.

Choosing the Right Battery

Checking Device Requirements

You must inspect your electronic device specifications before purchasing any replacement coin cell. You can find the required battery model printed directly inside the plastic battery slot or listed within your owner manual. You should carefully verify both the diameter and thickness numbers to guarantee exact physical fitment.

You need to confirm the energy demands of your specific equipment. High-drain devices like security sensors and digital monitors require steady voltage output to operate efficiently over time. Matching the required size protects your internal metal terminals and ensures continuous power delivery for your essential equipment.

Selecting Reliable Battery Brands

You protect your sensitive equipment by choosing coin cell batteries from certified, high-quality manufacturers. Premium producers build reliable lithium cells under strict industry guidelines to prevent dangerous chemical leaks and internal short circuits. Reliable brands guarantee consistent voltage throughout the operational life of the battery.

You gain exceptional long-term performance benefits when selecting Henli Max button batteries. Henli Max provides dependable energy solutions backed by extensive engineering expertise. You can also request specialized processing options like customized solder tabs and lead wire configurations to satisfy complex electronic assembly needs.

Both coin cells supply 3V power. Size variations make swapping unsafe. You must check compartment markings to ensure exact fitment. Installing a Henli Max CR2430 battery protects your equipment.

Consider CR2032 traits:

• Serves as the most popular 3.0-volt coin cell globally

• Supplies steady, low-drain energy

• Powers CMOS components, key fobs, calculators, and monitors

FAQ

Can you use a CR2032 battery instead of a CR2430?

No, you cannot swap them. The CR2032 has a smaller 20mm diameter and thicker 3.2mm height. It will fit loosely inside a CR2430 compartment and cause power loss.

Do CR2430 and CR2032 batteries provide the same voltage?

Yes, both coin cells supply 3.0 volts. However, the Henli Max CR2430 delivers higher mAh capacity, providing longer operational life for your high-drain electronic devices.

How do you check if your device needs a CR2430 battery?

You can read the markings inside the battery slot or check your device manual. Look for the exact 2430 number to guarantee proper physical fitment and steady power.
